This is Not a Project, Just a REVISED Look at the Layout and Schematic of a 13 Watt CFL.

I was Unable to find any Data on the two "MC710" Transistors.
They are Not Motorola Parts, But Testing them I determine they are "NPN" Transistors with a Very Low "HFE" Value.
And based on Supply Voltages, they must be rated for 200 Volts or more.

POSSIBLY MORE INFO COMING.




"Back to My HOME Page"





  The Schematic,
 Hope I didn't make Many Errors.

I will check it out some more.


 Picture of Parts Side.


 Picture of Copper Side
 with Parts Overlay.

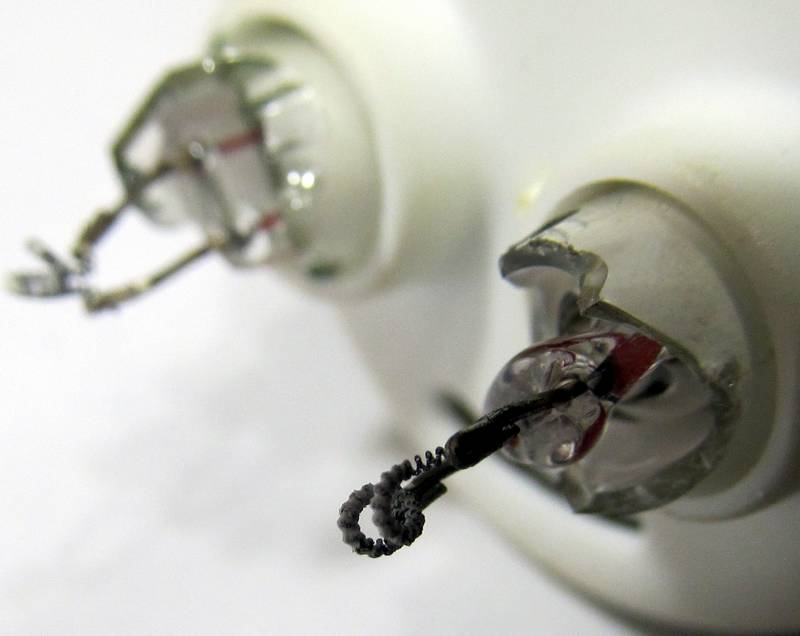

 Picture of the Heater Filaments.
