Oscilloscope Basics, Waveforms and Square Wave Testing.

Created "June 6 2005"
Updated "June 8 2005"

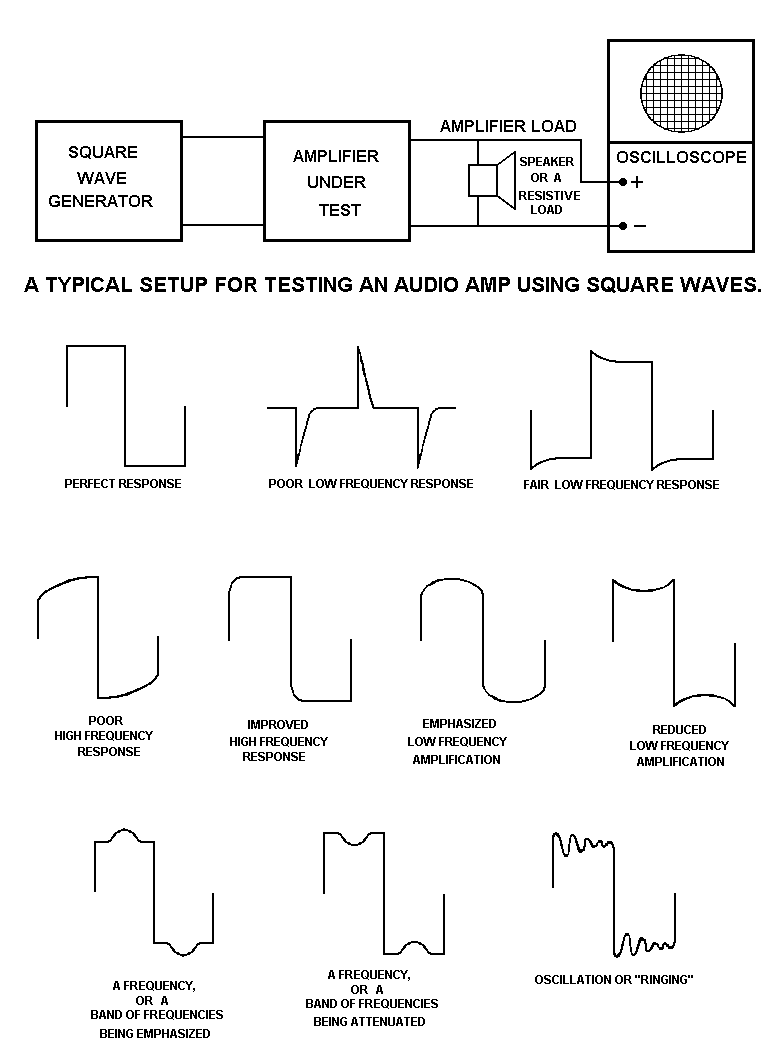

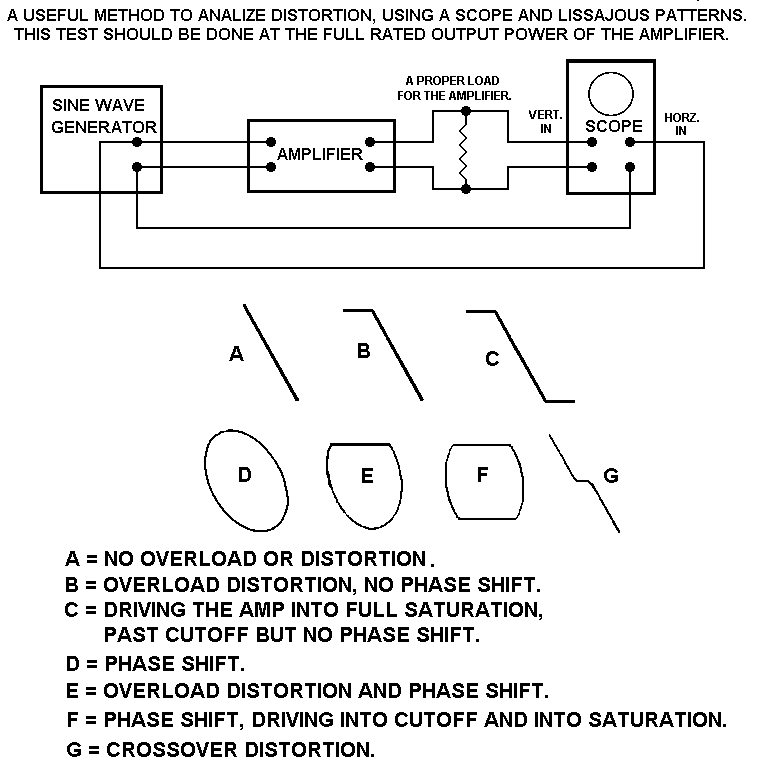

Presented here is a Basic Oscilloscope Schematic, and some Basic Setups and Signal Waveforms. All these are useful to know when using an Oscilloscope and a Signal Generator.

This Circuit is Operational, if someone wishes to build it.

The addition of "Vertical" and "Horizontal Ampilfiers", as well as well as a "Time Base" would make it more practical.

Other Scope tubes can also be used in this circuit, but you will need to use the appropriate Filament voltages, as well as a Higher Supply voltage. Most tubes are up in the 1,500 to 2,500 voltage range.

All Imformation in this Article is "Copyright protected".


*Copyright © 2005*
